HATCN
HATCN, HIL material for enhancing the performance of OLEDs
Able to prevent interfacial mixing and erosion during fabrication

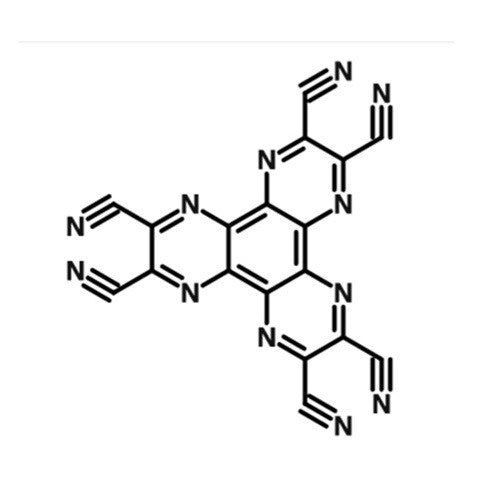

1,4,5,8,9,11-Hexaazatriphenylenehexacarbonitrile, also known as HAT-CN, is one of the members of the 1,4,5,8,9,12-hexaazatriphenylene (HAT) family, which have an electron-deficient, rigid, planar, aromatic discotic system with an excellent π–π stacking ability. For this reason, HAT-CN finds applications in organic light-emitting diodes (OLEDs) serving either as the hole-injection layer (HIL) or charge-generation layer (CGL) material.
General Information
| CAS number | 105598-27-4 |
|---|
| Chemical formula | C18N12 |
|---|
| Molecular weight | 384.27 g/mol |
|---|
| Absorption | λmax 282, 321 nm (in CH2Cl2) |
|---|
| Fluorescence | λem 422 nm (in CH2Cl2) |
| HOMO/LUMO | HOMO 7.5 eV, LUMO 4.4 eV [1] |
|---|
| Synonyms | 1,4,5,8,9,11-Hexaazatriphenylenehexacarbonitrile HAT-CN6 HATCN Dipyrazino[2,3-f:2',3'-h]quinoxaline-2,3,6,7,10,11-hexacarbonitrile
|
|---|
| Classification / Family | Charge-generation layer (CGL) materials, Hole-injection layer materials (HIL), OLED and PLED materials, Organic electronics, Perovskite solar cells. |
|---|
Product Details
| Purity | Sublimed M791 >99.0% Unsublimed M792 >98.0% |
|---|
| Thermal Gravimetric Analysis (TGA) | 430 °C (0.5% weight loss) |
|---|
| Appearance | Dark yellow powder/crystals |
|---|
Batch details
| Grade | Order Code | Quantity |
|---|
| Unsublimed (>98.0% purity) | M792 | 1 g |
|---|
| Sublimed (>99.0% purity) | M791 | 500 mg |
|---|
| Sublimed (>99.0% purity) | M791 | 1 g |
|---|
| Unsublimed (>98.0% purity) | M792 | 5 g |
|---|
| Sublimed (>99.0% purity) | M791 | 5 g |
|---|
| Sublimed (>99.0% purity) | M791 | 10 g |
|---|
